WQ Sewage Wastewater Submersible

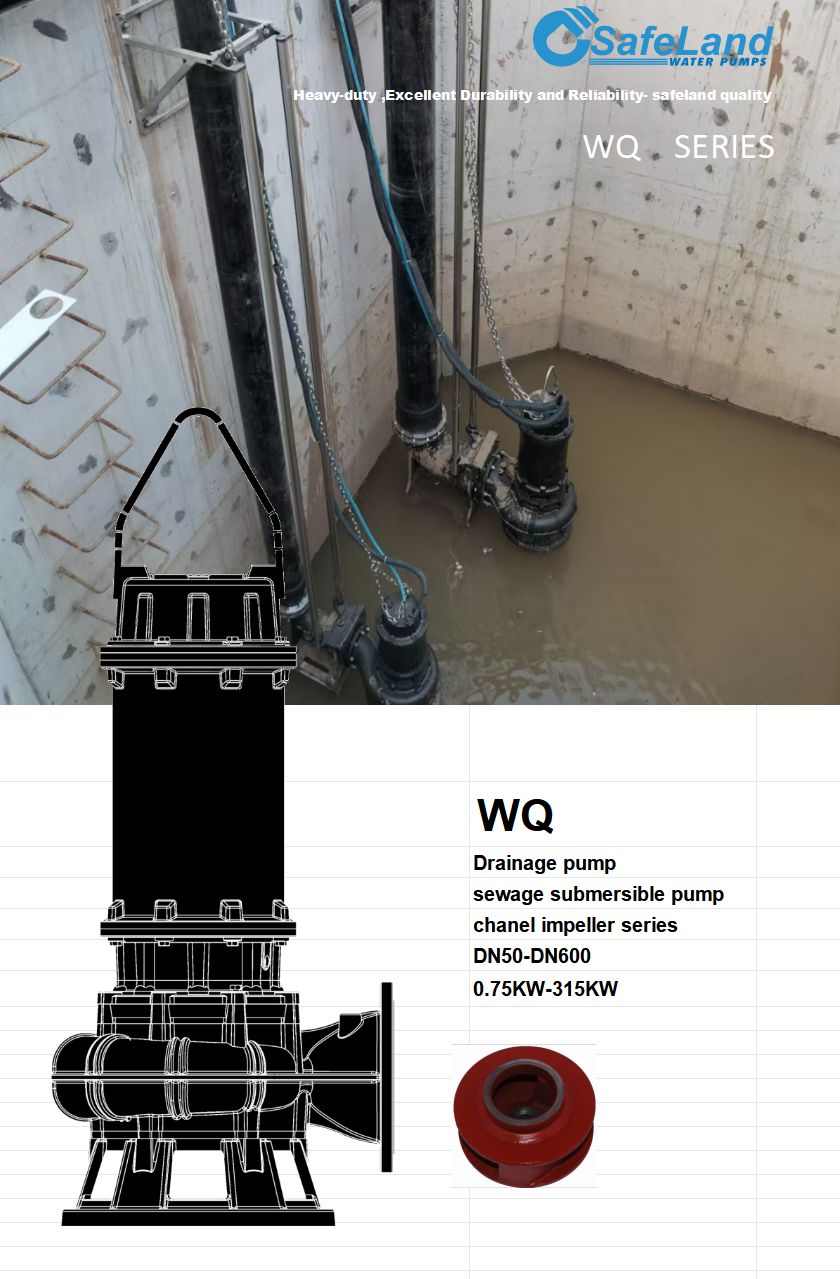

WQ 1.png

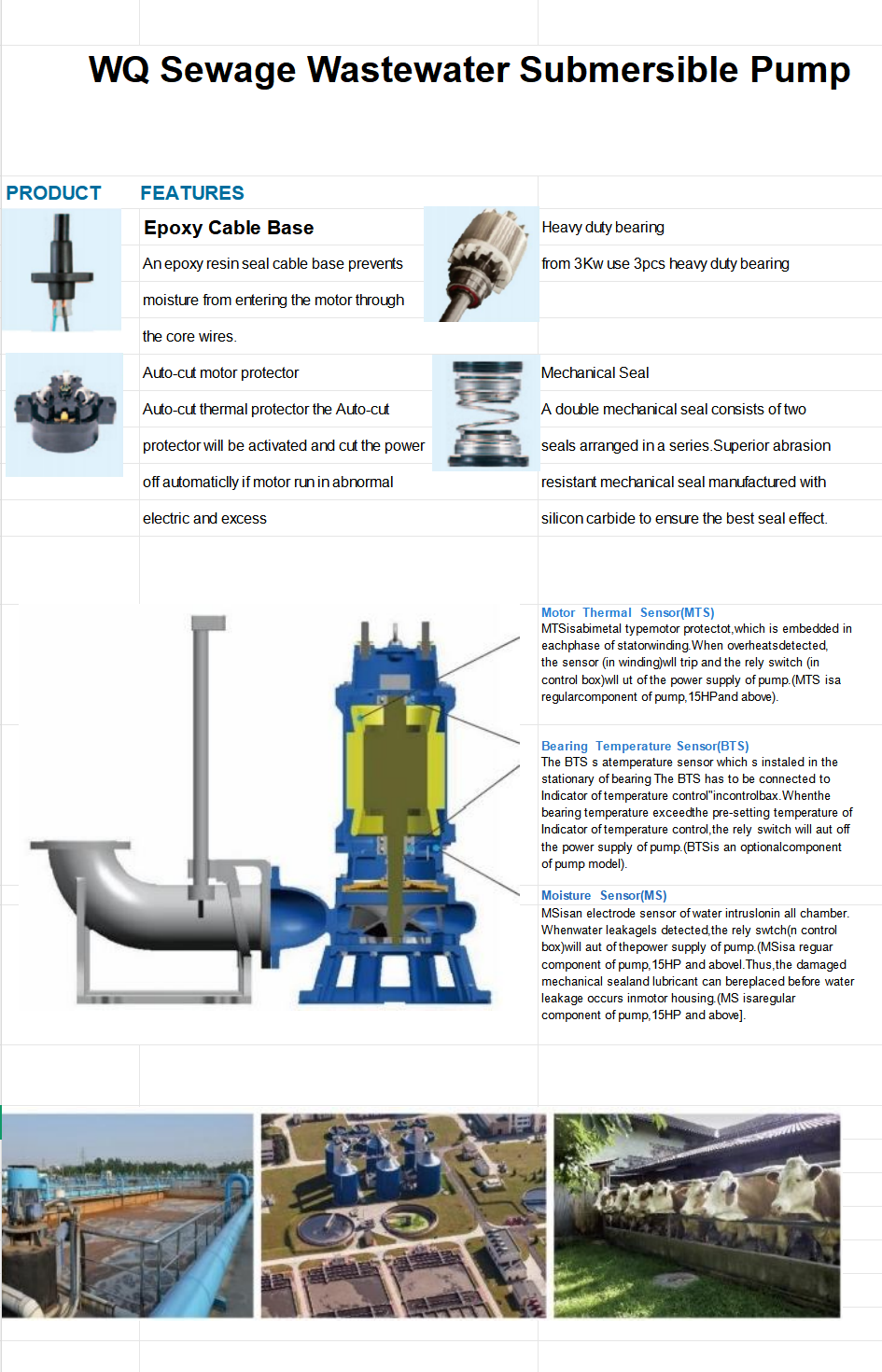

WQ 2.png

Drainage pump

sewage submersible pump

chanel impeller series

DN50-DN600

0.75KW-315KW

FEATURES:

Pump body is made of cast iron and with high solids epoxy coatingwhich offers the
highest quality and performance.

Triangular handle is designed foreasy handling on Guide Rail System(model above
5HP).

Chemically protected Viton O-rings to handle acidic and corrosive fluids.

Oil Elevation Disk design in the oil chamber to ensure the mechanical seals lubrication
and to extend the service life of pump.

APPLICATIONS:

Residential buildings,hospitals,commercial buildings and household usages.
Livestock farming,pig farming,dairy farming and sewage treatment

Food industry,pulp and paper industry,mining,dyeing and finishing factory,leather
factory,steel manufacturer,electronics industry and wastewater treatment

SPECIFICATIONS

ltem Description
Limits of Use	Liquid Temp.	0~40℃ (32~104°F)(60℃-90°℃ special order)
Limits of Use	Applications	Wastewater ·Sewage · Industrial Wastewater
Type	Frequency	50Hz
	Motor	2P (3000rpm)/4P(1500rpm) ·Dry Motor
	Insulation	Class F
	Protection	IP68
	Protector	Auto-cut (0.5HP 30~10HP) · MTS &MS(15~420HP)
	Bearing	Ball type
	M.seal	Double M.seals(alloy to silicon)
	Impeller	chanel
	Cable	VCT or H07RN-F
Optional	Pump can be customized to fit specifications

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
50WQ10-10-0.75	380V	1.68	0.75	1	2900	2	2"	10	10	23.73	11.9	20
50WQ12-10-1.1	380V	2.69	1.1	1.5	2900	2	2"	12	10	26.39	14.3	20
50WQ10-16-1.5	380V	3.84	1.5	2	2900	2	2"	10	16	31.81	18.5	20
50WQ9-22-2.2	380V	5.76	2.2	3	2900	2	2"	9	22	32.85	26.1	20
50WQ20-22-3	380V	6.81	3	4	2900	2	2"	20	22	39.87	27.9	20

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
50WQ27-22-4	380V	8.98	4	5.5	2900	2	2"	27	22	42.11	33.4	20
50WQ15-35-5.5	380V	11.66	5.5	7.5	2900	2	2"	15	35	50.03	40.3	20
50WQ15-38-7.5	380V	15.59	7.5	10	2900	2	2"	15	38	48.42	43.7	20
50WQ20-55-11	380V	23.0	11	55	2900	2	2"	20	55	42.14	64.7	20
50WQ20-68-15	380V	30.61	15	20	2900	2	2"	20	68	49.41	75.6	20

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
65WQ15-9-1.1	380V	2.44	1.1	1.5	2900	2	2.6"	15	9	29.61	13.3	25
65WQ20-10-1.5	380V	3.03	1.5	2	2900	2	2.6"	20	10	38.00	14.34	25
65WQ20-15-2.2	380V	4.62	2.2	3	2900	2	2.6"	20	15	46.21	21.58	25
65WQ35-15-3	380V	6.09	3	4	2900	2	2.6"	35	15	46.96	24.44	25
65WQ25-22-4	380V	8.29	4	5.5	2900	2	2.6"	25	22	45.65	30.56	25

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
65WQ25-30-5.5	380V	11.59	5.5	7.5	2900	2	2.6"	25	30	59.46	36.48	25
65WQ30-35-7.5	380V	14.91	7.5	10	2900	2	2.6"	30	35	59.66	44.02	25
65WQ30-42-11	380V	22.61	11	15	2900	2	2.6"	30	42	49.23	21.58	25
65WQ30-62-15	380V	32.45	15	20	2900	2	2.6"	30	62	49.28	79.0	25

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
80WQ35-7-1.5	380V	3.31	1.5	2	2900	2	3.2"	35	7	52.26	12.71	30
80WQ40-9-2.2	380V	4.80	2.2	3	2900	2	3.2"	40	9	59.95	15.87	30
80WQ43-13-3	380V	6.37	3	4	2900	2	3.2"	43	13	71.51	19.75	30
80WQ40-15-4	380V	8.65	4	5.5	2900	2	3.2"	40	15	75.70	22.30	30
80WQ45-20-5.5	380V	11.87	5.5	7.5	2900	2	3.2"	45	20	88.14	27.60	30
80WQ45-24-7.5	380V	14.16	7.5	10	2900	2	3.2"	45	24	90.85	29.85	30

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
80WQ60-26-11	380V	19.37	11	15	2900	2	3.2"	60	26	95.86	42.2	30
80WQ60-38-15	380V	27.53	15	20	2900	2	3.2"	60	38	91.25	53.1	30
80WQ60-42-18.5	380V	35.18	18.5	25	2900	2	3.2"	60	42	108.94	53.6	30
80WQ70-45-22	380V	39.97	22	30	2900	2	3.2"	70	45	113.18	59.0	30
80WQ60-76-37	380V	72.71	37	50	2900	2	3.2"	60	76	169.25	87.0	30
80WQ60-97-55	380V	97.94	55	75	2900	2	3.2"	60	97	174.82	109.6	30

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
100WQ60-12-5.5	380V	10.90	5.5	7.5	1450	4	4"	60	12	119.00	17.2	50
100WQ100-11-7.5	380V	14.97	7.5	10	1450	4	4"	100	11	133.25	21.4	50
100WQ100-21-11	380V	21.64	11	15	1450	4	4"	100	21	159.87	28.4	50
100WQ100-28-15	380V	30.19	15	20	1450	4	4"	100	28	161.11	36.6	50
100WQ100-31-18.5	380V	39.69	18.5	25	1450	4	4"	100	31	168.39	40.0	50
100WQ100-37-22	380V	42.72	22	30	1450	4	4"	100	37	168.27	46.5	50

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
100WQ100-57-45	380V	87	45	60	1450	4	4"	100	57	217.53	63.5	50
100WQ100-64-55	380V	99	55	75	1450	4	4"	100	64	212.87	72.7	50
100WQ100-93-110	380V	175	110	150	1450	4	4"	100	93	191.05	101.2	50
100WQ120-40-30	380V	57	30	40	1450	4	4"	120	40	207.91	47.7	50

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
100WQ120-46-37	380V	70	37	50	1450	4	4"	120	46	209.84	54.6	50
100WQ120-71-75	380V	131	75	100	1450	4	4"	120	71	191.73	82.0	50
100WQ120-83-90	380V	152	90	120	1450	4	4"	120	83	192.11	92.8	50

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
100WQ50-5-1.5	380V	3.40	1.5	2	2900	2	4"	50	5	62.27	13.02	35
100WQ50-7-2.2	380V	4.44	2.2	3	2900	2	4"	50	7	71.25	16.08	35
100WQ60-9-3	380V	5.90	3	4	2900	2	4"	60	9	80.93	18.12	35
100WQ60-12-4	380V	7.93	4	5.5	2900	2	4"	60	12	85.93	21.58	35

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
100WQ60-77-37	380V	74	37	50	2900	2	4"	60	77	198.73	90.1	50
100WQ60-100-55	380V	98	55	75	2900	2	4"	60	100	200.35	113.1	50

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
100WQ65-15-5.5	380V	10.77	5.5	7.5	2900	2	4"	65	15	86.34	27.7	35
100WQ65-20-7.5	380V	15.77	7.5	10	2900	2	4"	65	20	87.77	29.4	35
100WQ80-25-11	380V	22.13	11	15	2900	2	4"	80	25	123.07	37.7	35
100WQ80-33-15	380V	30.01	15	20	2900	2	4"	80	33	122.70	45.8	35
100WQ80-38-18.5	380V	34.58	18.5	25	2900	2	4"	80	38	119.93	51.0	35
100WQ70-43-22	380V	36.86	22	30	2900	2	4"	70	43	120.28	54.7	40

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
150WQ103-12-7.5	380V	14.55	7.5	10	1450	4	6"	103	12	183.20	18.5	55
150WQ150-7-5.5	380V	14.51	5.5	7.5	1450	4	6"	150	7	197.20	15.8	55
150WQ180-11-11	380V	20.15	11	15	1450	4	6"	180	11	261.23	19.7	60
150WQ180-19-18.5	380V	36.92	18.5	25	1450	4	6"	180	20	328.21	27.2	60
150WQ180-30-30	380V	61.86	30	40	1450	4	6"	180	30	308.69	41.2	60

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
150WQ200-13-15	380V	27.79	15	20	1450	4	6"	200	13	294.21	23	60
150WQ200-20-22	380V	42.02	22	30	1450	4	6"	200	20	351.17	29.9	60
150WQ200-29-37	380V	65.41	37	50	1450	4	6"	200	29	343.93	40.7	60
150WQ200-35-45	380V	81.22	45	60	1450	4	6"	200	35	361.57	46.9	60
150WQ180-50-55	380V	103	55	75	1450	4	6"	180	50	304.66	62.3	60

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
150WQ200-58-75	380V	141	75	100	1450	4	6"	200	58	341.89	67.0	60
150WQ200-70-90	380V	171	90	120	1450	4	6"	200	70	341.26	81.3	60
150WQ200-73.5-110	380V	179	110	150	1450	4	6"	200	74	332.82	82.5	60
150WQ200-81-132	380V	257	132	176	1450	4	6"	200	81	514.96	89.8	60
150WQ200-96-160	380V	314	160	217	1450	4	6"	200	96	520.15	99.7	60
150WQ400-88-185	380V	349	185	250	1450	4	6"	400	88	670.04	103.5	60

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
150WQ100-4.4-5.5	380V	9.34	5.5	7.5	2900	2	6"	100	4.4	115.34	17.0	35
150WQ100-7.5-7.5	380V	11.37	7.5	10	2900	2	6"	100	7.5	125.03	21.3	35
150WQ100-34-18.5	380V	33.31	18.5	25	2900	2	6"	100	35	172.24	46.1	40
150WQ100-39-22	380V	38.37	22	30	2900	2	6"	100	39	178.84	51.9	40
150WQ100-64-37	380V	90.71	37	50	2900	2	6"	100	64	277.66	79.1	40

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
150WQ120-16-11	380V	19.38	11	15	2900	2	6"	120	16	149.12	32.3	50
150WQ120-24-15	380V	29.80	15	20	2900	2	6"	120	25	143.36	40.8	50
150WQ200-52-55	380V	89	55	75	2900	2	6"	200	52	391.82	73.2	50

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
200WQ200-7-7.5	380V	15	7.5	10	1450	4	8"	200	7	279.03	13.6	80
200WQ180-12-11	380V	20	11	15	1450	4	8"	180	12	318.83	20.9	80
200WQ200-15-15	380V	29	15	20	1450	4	8"	200	15	344.54	23.8	80
200WQ250-15-18.5	380V	38	18.5	25	1450	4	8"	250	15	389.09	26.4	80
200WQ300-14-22	380V	42	22	30	1450	4	8"	300	14	375.70	29.0	80

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
200WQ250-22-30	380V	51	30	40	1450	4	8"	250	22	444.10	32.2	80
200WQ300-25-37	380V	70	37	50	1450	4	8"	300	25	441.28	39.9	80
200WQ300-31-45	380V	92	45	60	1450	4	8"	300	31	393.74	48.5	80
200WQ300-40-55	380V	103	55	75	1450	4	8"	300	40	451.93	52.2	80
200WQ350-42-75	380V	128	75	100	1450	4	8"	350	42	492.57	54.9	80

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
200WQ300-52-90	380V	153	90	120	1450	4	8"	300	52	491.42	63.2	80
200WQ300-66-110	380V	185	110	150	1450	4	8"	300	66	446.67	77.3	80
200WQ400-72-132	380V	225	132	176	1450	4	8"	400	72	550.26	90.5	80
200WQ300-94.5-160	380V	290	160	213	1450	4	8"	300	94.5	421.95	26.4	80
200WQ400-88-185	380V	349	185	250	1450	4	8"	400	88	670.04	103.5	80

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
200WQ180-11-11	380V	18	11	15	2900	2	8"	180	11	229.89	23.2	80
200WQ180-17-15	380V	25	15	17	2900	2	8"	180	17	249.02	28.8	80
200WQ180-16-18.5	380V	30	18.5	25	2900	2	8"	180	16	362.78	27.1	80
200WQ200-19-22	380V	39	22	30	2900	2	8"	200	19	379.16	30.3	80
200WQ200-35.5-37	380V	62	37	50	2900	2	8"	200	35.5	463.35	53.1	80
200WQ350-38-55	380V	97	55	75	2900	2	8"	350	38	612.20	66.3	80

Model

VOLTAGE

Current

Motor power

speed

Outlet

Rated capacity

Rated head

Max capacity

Max head

Impeller passage

50Hz

Rpm pole

inch

m³/h

200WQ350-38-55

380V

2900

350

612.20

66.3

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
250WQ400-5-11	380V	22	11	15	1450	4	10"	400	5	519.59	13.7	85
250WQ400-6-15	380V	27	15	20	1450	4	10"	400	6	552.73	15.7	85
250WQ400-10-18.5	380V	39	18.5	25	1450	4	10"	400	10	667.01	20.1	85
250WQ500-10-22	380V	47	22	30	1450	4	10"	500	10	703.81	22.2	85
250WQ500-14-30	380V	58	30	40	1450	4	10"	500	14	831.59	25.2	85

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
250WQ600-14-37	380V	67	37	50	1450	4	10"	600	14	904.28	28.4	85
250WQ500-21-45	380V	84	45	60	1450	4	10"	500	21	1000.80	29.7	85
250WQ600-21-55	380V	94	55	75	1450	4	10"	600	21	1041.60	35.7	85
250WQ600-28-75	380V	146	75	100	1450	4	10"	600	28	1127.80	41.0	85
250WQ600-32-90	380V	166	90	120	1450	4	10"	600	32	1090.90	46.6	85

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
250WQ605-38-110	380V	198	110	150	1450	4	10"	605	38	1117.30	49.5	85
250WQ605-53-132	380V	243	132	176	1450	4	10"	605	53	802.67	65.1	85
250WQ604-60-160	380V	279	160	213	1450	4	10"	604	60	806.45	70.1	85
250WQ600-65-185	380V	332	185	250	1450	4	10"	600	65	807.00	76.7	85
250WQ689-60-200	380V	351	200	266	1450	4	10"	689	60	804.54	81.25	85

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
300WQ650-4.5-18.5	380V	36	18.5	25	1450	4	12"	650	4.5	824	13.2	90
300WQ650-6.5-22	380V	43	22	30	1450	4	12"	650	6.5	874	16.8	90
300WQ800-7-30	380V	59	30	40	1450	4	12"	800	7	973	20.6	90
300WQ800-9-37	380V	78	37	50	1450	4	12"	800	9	1045	25.1	90
300WQ800-10-45	380V	91	45	60	1450	4	12"	800	10	1003	31.7	90

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
300WQ800-13-55	380V	100	55	75	1450	4	12"	800	13	1079	36.2	90
300WQ800-22-75	380V	149	75	100	1450	4	12"	800	22	1258	34.8	90
300WQ800-23-90	380V	160	90	120	1450	4	12"	800	23	1280	40.5	90
300WQ800-30-110	380V	200	110	150	1450	4	12"	800	30	1226	40.8	90
300WQ800-37-132	380V	209	132	176	1450	4	12"	800	37	1152	49.4	90

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
300WQ800-40-160	380V	264	160	217	1450	4	12"	800	40	1144	58.9	90
300WQ900-45-185	380V	323	185	250	1450	4	12"	900	45	1173	65.6	90
300WQ800-54-250	380V	443	250	350	1450	4	12"	800	54	1108	63.9	90
300WQ900-64-315	380V	601	315	420	1450	4	12"	900	64	1318	81.9	90

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
350WQ900-6.8-30	380V	63	30	40	980Rpm	6	14"	900	6.8	1295	12.5	90
350WQ1100-6-37	380V	72	37	50	980Rpm	6	14"	1100	6	1417	16.4	90
350WQ800-11-45	380V	90	45	60	980Rpm	6	14"	800	11	1505	19.0	90
350WQ1100-10-55	380V	107	55	75	980Rpm	6	14"			1493	19.4	90
350WQ1100-16-75	380V	119	75	100	980Rpm	6	14"	1100	16	1600	26.8	90

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
350WQ1200-17-90	380V	167	90	120	980Rpm	6	14"	1200	17	1689	25.4	90
350WQ1500-16-110	380V	192	110	150	980Rpm	6	14"	1500	16	1900	32.7	90
350WQ1500-18.7-132	380V	233	132	176	980Rpm	6	14"	1500	18.7	2035	37.0	90
350WQ1400-23-160	380V	273	160	217	980Rpm	6	14"	1400	23	2051	41.4	90
350WQ1600-28-200	380V	391	200	72	980Rpm	6	14"	1600	28	2407	45.8	90

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
350WQ1000-7-37	380V	84	37	50	1450	4	14"	1000	7	1301	18.8	90
350WQ900-10.5-45	380V	87	45	60	1450	4	14"	900	10.5	1347	21.9	90
350WQ1000-10.6-55	380V	108	55	75	1450	4	14"	1000	10.6	1394	26.2	90
350WQ1000-12-75	380V	135	75	100	1450	4	14"	1000	12	1319	37.7	90
350WQ1000-18-90	380V	162	90	120	1450	4	14"	1000	18	1496	43.3	90

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
350WQ1300-18-110	380V	194	110	150	1450	4	14"	1300	18	1651	40.0	90
350WQ1100-28-132	380V	146	132	176	1450	4	14"	1100	28	1310	46.9	90
350WQ1000-33-160	380V	301	160	217	1450	4	14"	1000	33	1860	36.6	90
350WQ1200-31-185	380V	334	185	250	1450	4	14"	1200	31	1510	47.5	90
350WQ1500-34-250	380V	428	250	350	1450	4	14"	1500	34	1825	55.9	90

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
400WQ1000-8-37	380V	81	37	50	980Rpm	6	16"	1000	8	1518	15.6	100
400WQ1300-6-45	380V	84	45	60	980Rpm	6	16"	1300	6	1539	16.6	100
400WQ1000-12.6-55	380V	97	55	75	980Rpm	6	16"	1000	12.6	1589	18.6	100
400WQ1000-16.5-75	380V	97	75	100	980Rpm	6	16"	1000	16.5	1849	24.8	100
400WQ1200-20-90	380V	185	90	120	980Rpm	6	16"	1200	20	1790	27.5	100

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
400WQ1354-18-110	380V	186	110	150	980Rpm	6	16"	1354	18	1790	27.5	100
400WQ1600-20-132	380V	249	132	176	980Rpm	6	16"	1600	20	2635	34.2	100
400WQ1600-19-160	380V	314	160	217	980Rpm	6	16"	1600	19	2987	29.8	100
400WQ2000-21-185	380V	351	185	250	980Rpm	6	16"	2000	21	3086	34.6	100
400WQ2000-22-200	380V	360	200	275	980Rpm	6	16"	2000	22	3142	33.5	100

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
400WQ1000-11-55	380V	115	55	75	1450	4	16"	1000	11	1355	28.2	100
400WQ1000-16-75	380V	137	75	100	1450	4	16"	1000	16	1432	33.9	100
400WQ1000-21-90	380V	161	90	120	1450	4	16"	1000	21	1527	44.3	100
400WQ1200-21-110	380V	201	110	150	1450	4	16"	1200	21	1676	40	100
400WQ1000-29-132	380V	234	132	176	1450	4	16"	1000	29	1201	48	100

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
400WQ1600-20-160	380V	272	160	217	1450	4	16"	1600	20	1806	42.7	100
400WQ1500-28-185	380V	354	185	250	1450	4	16"	1500	28	1859	49.5	100
400WQ1500-28-200	380V	329	200	275	1450	4	16"	1500	28	1903	44.2	100
400WQ1250-40-250	380V	418	250	350	1450	4	16"	1250	40	1868	51.2	100

Model

VOLTAGE

Current

Motor power

speed

Outlet

Rated capacity

Rated head

Max capacity

Max head

Impeller passage

50Hz

Rpm pole

inch

m³/h

500WQ2600-13.5-160

380V

317

160

217

740Rpm

20"

2600

13.5

3717

22.1

100

500WQ3000-14-185

380V

354

185

250

740Rpm

20"

3000

4140

25.5

100

Model	VOLTAGE	Current	Motor power		speed		Outlet	Rated capacity	Rated head	Max capacity	Max head	Impeller passage
50Hz	V	A	KW	HP	Rpm pole		inch	m³/h	m	m³/h	m	mm
500WQ2200-5-55	380V	116	55	75	980Rpm	6	20"	2200	5	2469	16	100
500WQ2000-7.5-75	380V	146	75	100	980Rpm	6	20"	2000	7.5	2477	20.3	100
500WQ2000-10-90	380V	172	90	120	980Rpm	6	20"	2000	10	2946	20.7	100
500WQ2800-9-132	380V	252	132	176	980Rpm	6	20"	2800	10	3576	25.8	100
500WQ2600-11-160	380V	260	160	217	980Rpm	6	20"	2600	11	3284	31	100
500WQ3000-12.6-185	380V	435	185	250	980Rpm	6	20"	3000	12.6	3827	29.2	100
500WQ3000-18-250	380V	544	250	350	980Rpm	6	20"	3000	18	3996	34.4	100
500WQ3500-20-315	380V	627	315	425	980Rpm	6	20"	3500	20	4454	37.6	100

Model	Voltage	Current	Motor power		Outlet		Rated capacity	Rated head	Max capacity	Max head	Impeller passage	SPEED
50Hz 980rpm	V	A	KW	HP	in	mm	m³/h	m	m³/h	m	mm
600WQ3100-7.5-132	380	271	132	176	24	600	3100	7.5	4125	18	150	740RPM
600WQ2700-10-160	380	327	160	217	24	600	2700	10	3593	28.8	150	980RPM
600WQ2500-17-185	380	423	185	250	24	600	2500	17	3577	26.5	150	980RPM
600WQ3200-12.7-200	380	539	200	272	24	600	3200	12.7	4459	24.8	150	980RPM

Upper： grinder cutting pump GNWQ series 50hz 60hz

Below： CP close-coupled centrifugal pumps 50hz
