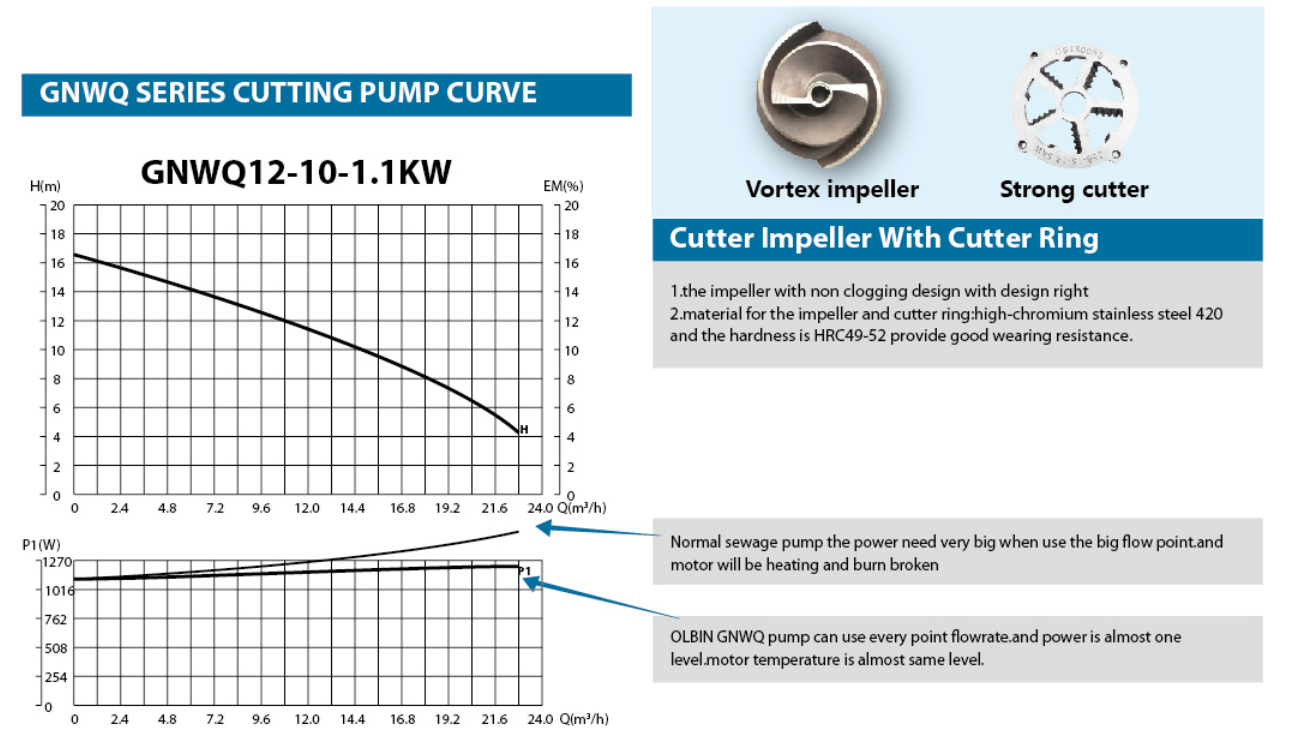

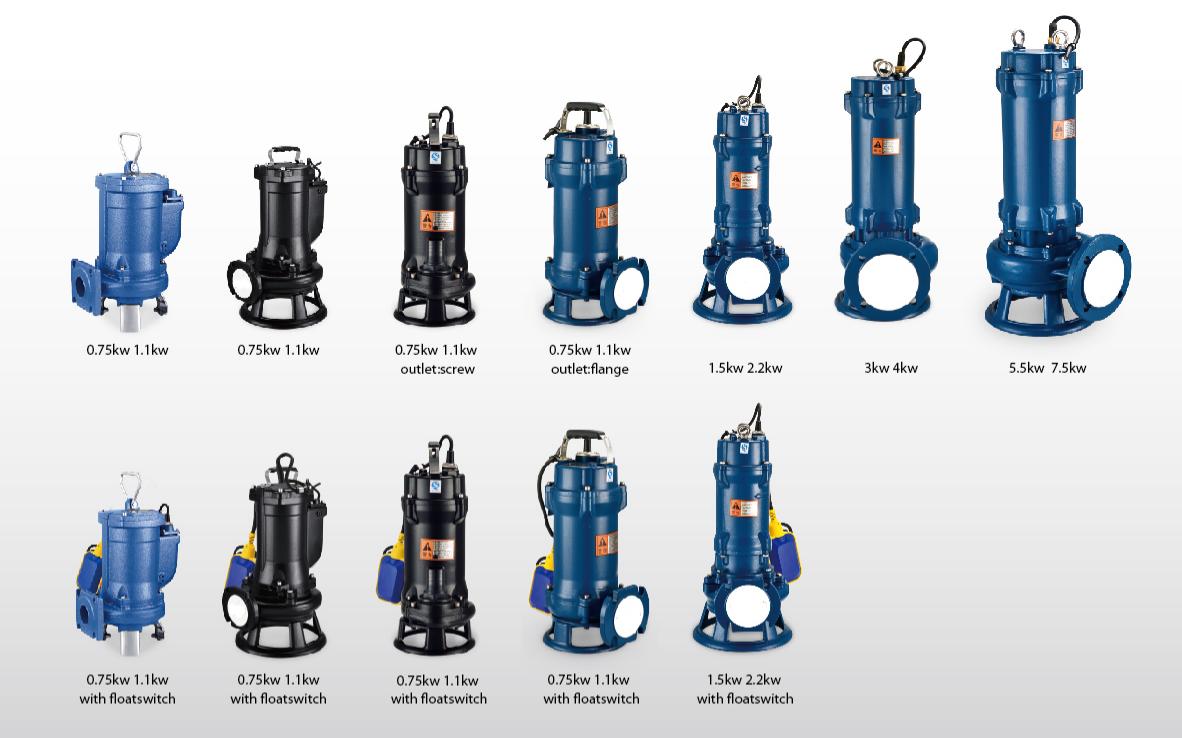

grinder cutting pump GNWQ series 50hz 60hz

Model	Driving motor P2(kw)		Q(m³/h)	0	4	8	12	16	20	22	28	30
Model	Kw	Hp	Q(L/min	0	67	133	200	267	333	367	467	500
50GNWQ10-10-0.75	0.75	1	H(m)	15	14	12	10	8	3
50GNWQ12-10-1.1	1.1	1.5		17	15	14	12	10	6.5	5
50GNWQ15-15-1.5	1.5	2		23	21	19	17	15	13	12	7	6
65GNWQ25-10-1.5	1.5	2		23	21	19	17	15	13	12	7	6

Model	Driving motor P2(kw)		Q(m³/h)	0	10	20	30	38	47	60	70	80	90
Model	Kw	Hp	Q(L/min	0	167	333	500	633	783	1000	1167	1333	1500
50GNWQ9-22-2.2	2.2	3	H(m)	22	20	18	14	10
65GNWQ25-15-2.2	2.2	3		24	20	16	13	10	5.5
80GNWQ45-9-2.2	2.2	3		25	22	19	15	11	5
50GNWQ20-22-3	3	4		32	27	23	17	13
65GNWQ35-15-3	3	4		25	22	19	16	13
80GNWQ43-13-3	3	4		23	20	18	15	13	9	3.5

Model				Driving motor P2(kw)				Q(m³/h)						0	10	20	30	38	47	60	70	76	90	100	107	120	150
Model				Kw		Hp		Q(L/min)						0	167	333	500	633	783	1000	1167	1267	1500	1667	1783
65GNWQ25-22-4				4		5.5		H(m)						28	26	24	22	19	17	14	10
80GNW045-17-4				4		5.5								28	26	23	21	19	17	14	10	8.5
80GNWQ45-20-5.5				5.5		7.5								31	29	27	26	23	21	18	16	14	10
100GNWQ65-15-5.5				5.5		7.5								32	29	26	25	22	20	18	15	13	9
50GNWQ20-40-7.5				7.5		10								49	46	44	40	35	29	20
80GNWQ45-22-75				7.5		10								32	30	28	26	25	23	21	20	18	16	12
100GNWO100-15-75				7.5		10								34	31	29	28	26	25	23	21	20	17	15	13	10	5

50GNCWQ CURVE 2900 rpm
Model	Motor Power		Q(m³/h)	0	5	10	15	20	25	30	35	40	45	50	55	60	67	70
Model	KW	HP	Q(L/min)	0	83.3	167	250	333	417	500	583	667	750	833	917	1000	1117	167
50GNWQ40-47-11	11	15	H(m)	62.7	60.8	60	59	57.6	55.9	53	50.8	47.8	43.6	39	34	28.5
50GNWQ30-62-15	15	20	H(m)	74.1	72.5	70.7	69.5	37.5	65	62.6	58.5	56	50	45	42.7	35.2	27
80GNCWQ CURVE 2900 rpm
Mode	Motor Power		Q(m³/h)	0	13	26	39	52	65	78	91	104	117	130	143	156	169	182
Mode	KW	HP	Q(L/min)	0	217	433	650	867	1083	1300	1517	1733	950	2167	2383	2600	2817	3033
80GNWQ60-30-11	11	15	H(m)	37.8	36	24.2	32.5	29.8	28.5	26	24	21.8	19.2	15.6
80GNWQ93-35-15	15	20		49.2	47	45.5	42.5	41	38.5	37	35.5	32.8	31.5	37.5	25	20
80GNWQ80-40-22	22	30		49.8	49	46.2	44.5	43	41.5	40	37	35.6	33	30	28.5	26	23.6
100GNCWQ CURVE 1450rpm
Mode	Motor Power		Q(m³/h)	0	18	36	54	72	90	108	126	144	162	180	198	216	234	240
	Motor Power		Q(m³/h)	0	18	36	54	72	90	108	126	144	162	180	198	216	234	240
	KW	HP	Q(L/min)	0	300	600	900	1200	1500	1800	2100	2400	2700	3000	3300	3600	3900	4000
100GNWQ86-20-11	11	15	H(m)	26.1	25.5	23.5	22.3	21.5	19.8	18.5	17.5	16.1	4.5	12.6	11.3	8.9
100GNWQ150-21-15	15	20	H(m)	36	32	29.5	28.2	26	24	23	22	21.7	20.3	19.8	17.5	17
100GNCWQ CURVE 2900 rpm
100GNWQ80-28-11	11	15	H(m)	38.6	36.5	24	31.8	28.5	26.7	24	20.5	15.5	5.4
100GNWQ80-36-15	15	20		48.4	46.3	43.5	40.3	36.4	34.5	32	27.5	22.5	14.1	5.7
100GNWQ120-30-18.5	18.5	25		46.2	43.5	40.5	38.8	36.4	34	31.8	28.5	27	23.5	22.2	19	16.5	13.5	11
100GNWQ180-29-22	22	30		53.8	52	49	45.8	43	40.5	38.5	36.8	34.5	31.5	29.7	27	25.5	21	20.5

150GNCWQ CURVE 1450rpm
Model	Motor Power		Q(m³/h)	0	30	60	90	120	150	180	210	240	270	300	330	360	390	420
Model	KW	HP	Q(L/min)	0	500	0	1500	2000	2500	3000	3500	4000	4500	5000	5500	6000	6500	7000
150GNWQ150-15-1	11	15	H(m)	25.0	22.5	20.6	18.8	16	15	12.5	9.5	5.6	3.1
150GNWQ200-15-15	15	20		27.8	25.5	23.2	21.5	19.5	18.1	17	15	13	11.1	10	6.5	4.4
50GNWQ250-15-18.5	18.5	25		31.0	29	26.5	25	24	22.5	21.2	20.1	18.8	17.5	14.8	13.2	11.5	9.5
150GNWQ300-15-22	22	30		28.3	27.8	26.5	24	23	22	19.8	19	16.5	15.7	13	12	9.9	6.3	7.3
50GNWQ181-30-30	30	40		45.5	43.5	40.7	38	35.8	32.5	30.5	26.8	24.7	21.5	17.8
150GNWQ194-47-37	37	50		66.7	63	58.5	56	55.3	51.2	49	45.5	41	37	30
150GNWQ200-36-45	45	60		55.7	53.6	51	48.5	43.5	42.5	38.5	34.5	32.7	29.5	26.5	21.2
150GNWQ194-47-55	55	75		66.7	63	58.5	56	55.3	51.2	49	45.5	41	37	30
150GNCWQ CURVE 2900rpm
150GNWO88-14.75	7.5	10	H(m)	30.3	24.5	19.5	13.8	7.5
150GNWQ134-17-11	11	15		29.8	26.5	24.5	21.3	18.6	15.8	11.5	2.8
150GNWQ127-23-15	15	20		35.7	32.5	30.3	27.5	24.2	21	17.5	2.2
150GNWQ180-22-18.5	18.5	25		44.5	40.5	37	32.5	28.9	26	22.3	18.5	14.3
150GNWQ180-30-22	22	30		50.9	45.5	41.8	39.5	36.5	33.6	30	27.6	21.5	10.5	3.3
200GNCWQ CURVE 2900rpm
Model	Motor Power		Q(m³/h)	0	69	138	207	276	345	414	483	552	621	690	759	828	897	966
Model	KW	HP	Q(L/min	0	1150	2300	3450	4600	5750	6900	8050	9200	10350	11500	12650	13800	14950	16100
200GNWQ200-20-18.5	18.5	25	H(m)	44.0	36	28	20	8.5
200GNWQ200-25-22	22	30	H(m)	48.8	40	33.5	26	7.7

200GNCwQ CURVE 1450rpm
Model	Motor Power		Q(m³/h)	0	69	138	207	276	345	414	483	552	621	690	759	828	897	966
Model	KW	HP	Q(L/min)	0	1150	2300	3450	4600	5750	6900	8050	9200	10350	11500	12650	13800	14950	16100
200GNWQ150-14-11	11	15	H(m)	24.2	19.7	15.5	10.0
200GMvO250-15-18.5	5186	25		27.2	23.3	20.1	16.8	13.5	9.5
200GNWQ256-15-22	22	30		28.3	23.8	21.5	17.2	14.0	10.2
200GNWQ450-16-30	30	40		32.3	30.0	28.0	24.2	22.5	20.5	8.0	15.5	13.3	11.0	9.2
200GNWQ300-20-37	37	50		31.2	29.5	26.5	23.0	21.5	19.5	16.0	2.8	9.0	6.5
200GNWQ500-29-55	55	75		43.6	40.5	38.4	36.0	35.0	32.5	30.1	29.2	27.1	24.5	21.5	18.2	14.6
200GNWQ600-30-75	75	100		48.5	47.0	44.5	42.2	40.3	38.8	36.5	34.7	32.0	29.5	27.0	24.5	17.5
200GNWQ700-33-90	90	120		56.0	53.5	52.4	49.7	48.5	46.0	43.0	41.2	38.8	36.5	34.0	31.5	26.6	22.1	12.8
250GNCWQ CURVE 1450rpm
Model	Motor Power		Q(m³/h)	0	69	138	207	276	345	414	483	552	621	690	759	828	897	966
Model	KW	HP	Q(L/min)	0	1150	2300	3450	4600	5750	6900	8050	9200	10350	11500	12650	13800	14950	16100
250GNWQ400-18-30	30	40	H(m)	32.2	30.1	27.5	24.5	22.5	20.3	19.4	16.5	2.8	9.5	7.6	0
250GMWO418-19-37	27	50		34.4	32.2	30.0	27.5	24.5	22.6	19.8	16.7	12.5	10.4	8.0	5.0
250GNWQ603-15-45	45	60		35.5	33.5	31.5	28.6	26.4	23.5	22.0	19.5	17.6	13.5	10.8	7.2
250GNWQ515-26-55	55	75		42.4	39.8	37.5	35.0	33.4	31.0	29.5	27.0	24.5	22.0	19.5	16.5	12.6	12.6
250GNWQ600-31-75	75	100		50.7	47.8	45.6	43.2	41.8	38.5	36.5	35.7	32.5	29.5	28.5	26.4	22.6	22.6
250GNWQ602-37-90	90	120		55.9	54.0	52.0	48.5	46.5	45.2	45.2	41.5	38.6	36.4	35.0	35.0	30.5	30.5

300GNCWQ CURVE 1450rpm
Model		Motor Power		Q(m³/h)	0	65	130	195	260	325	390	455	520	585	650	715	780	845	910
Model		KW	HP	Q(L/min	0	1083	2167	3250	4333	5417	6500	7583	667	9750	833	11917	13000	14083	15167
300GNWQ500-12-30		30	40	H(m)	28.7	27.0	25.5	22.6	200.0	18.2	16.3	13.9	11.5	9.4	6.6	3.5
300GNWQ500-14-37		37	50		30.3	28.0	25.5	23.3	20.9	18.5	18.0	15.5	13.4	11.2	8.2	6.3	3.0
300GNWQ500-20-45		45	60		36.5	33.5	32.3	31.5	28.5	27.3	24.0	22.5	18.5	16.3	13.4	0.5	8.4	2.1
300GNWQ600-25-55		55	75		41.7	40.2	38.5	36.5	348.0	33.4	31.5	29.6	27.4	25.3	22.5	21.4	18.5	4.2	3.6
300GNWQ540-29-75		75	100		48.0	46.3	44.2	40.5	38.8	36.6	33.8	31.5	29.5	26.4	22.7	15.5
300GNWQ600-37-90		90	120		59.3	57.0	54.5	50.5	48.6	46.5	44.8	42.3	39.1	38.2	34.5	28.6	18.5
