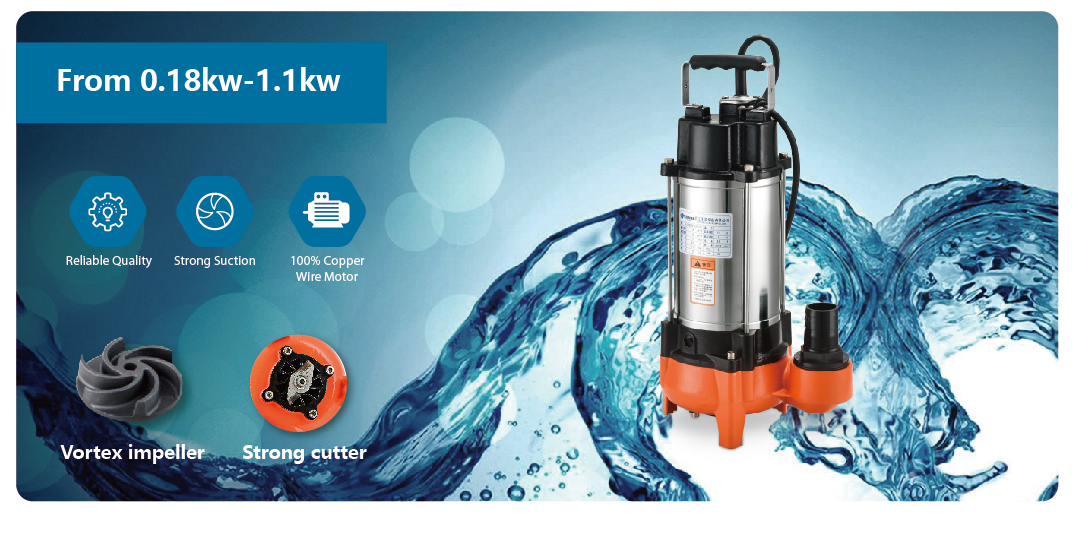

OL CUTTING SERIES Non-clogging Sewage Submersible Pump
| Mode | Driving motor P2(kw) | Q(m³/h) | 0 | 2 | 4 | 5 | 6 | 8 | 10 | 11 | 16 | 18 |
| Kw | Hp | Q(L/min) | 0 | 33 | 67 | 83 | 100 | 133 | 167 | 183 | 267 | 300 |
| OL5-5-0.18 | 0.18 | 0.25 | H(m) | 5 | 4 | 3 | 2 |
|
|
|
|
|
|
| OL6-6-0.37 | 0.37 | 0.5 | 6 | 5 | 4 | 3.3 | 2.5 |
|
|
|
|
|
| OL10-7-0.55 | 0.55 | 0.75 | 7 | 6.3 | 5.5 | 5 | 4.5 | 2.9 | 1 |
|
|
|
| OL11-7.5-0.75 | 0.75 | 1 | 7.5 | 6.9 | 6.3 | 5.9 | 5.5 | 4.3 | 2.7 | 1.9 |
|
|
| OL16-10-1.1 | 1.1 | 1.5 | 10 | 9 | 8.5 | 8.2 | 7.5 | 6.7 | 6.2 | 2.9 | 2.9 |
|
