0.45~1.5kW 2P

50Hz(synchronous speed: 3000rpm)

60Hz(synchronous speed: 3600rpm)

Specification

· lnsulation class : F

· Protection class : IP68

· Water temperature : up to 40℃

· PH : 6 to 10

· Density of liquid : up to 1.3g/cm³

· Power supply : three phase 380V±10%,50Hz

                          three phase 380V±10%,60Hz

                          single phase 220V±10%,50Hz

                          single phase 220V±10%,60Hz

· Motor protection : built in

· Capacity : up to 28m³/h

· Head : up to 18m

· Maximum immersion depth : 10m

· Cable Length : 8m

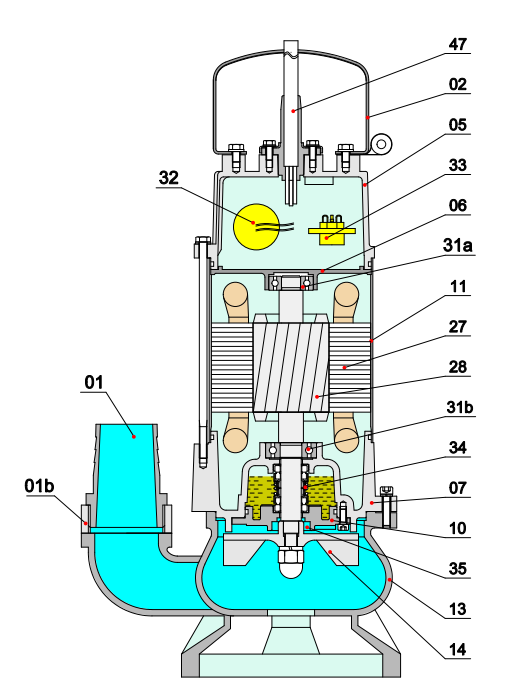

Materials of components
