vertex pump U-A series 50hz 60hz

0.45~5.5kW 2P

TYPE A

50Hz (synchronous speed: 3000rpm)

60Hz (synchronous speed: 3600rpm)

Specification

· lnsulation class : F

· Protection class : IP68

· Water temperature : up to 40℃

· PH : 6 to 10

· Density of liquid : up to 1.3g/cm³

· Power supply : single phase 220V±10%,50Hz,60Hz

three phase 380V±10%,50Hz,60Hz

· Motor protection : built in

· Capacity : up to 74m³/h

· Head : up to 27m

· Maximum immersion depth : 10m

· Cable Length : 8m

Movable Soft Pipe Installation (R)


Hard Pipe Installation(Y)

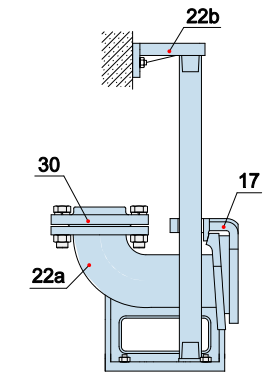

Auto-coupled Installation(z)

图片4.png 图片5.png

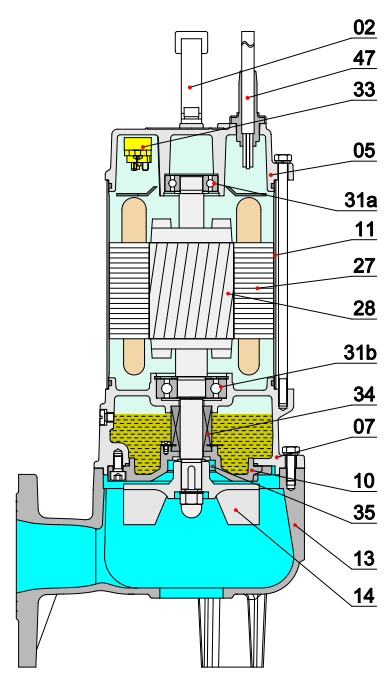

Materials of components

ltem No.	Part name	Material
01	Hose coupling	Cast iron
01a	Discharge connection	Cast iron
02	Handle
05	Uppor cover	Cast iron
07	Bearing house	Cast iron
10	Seal bracket	Cast iron
11	Motor body	stainless steel
13	Pump body	Cast iron
14	lmpeller	Cast iron
17	Coupling adapter	Cast iron
22a	Coupling seat	Cast iron
22b	Upper guide support	Cast iron
27	stator
28	Rotor	Shaft : AISI304SS
30	Flange	Cast iron
31a	Bearing	Ball bearing
31b	Bearing	Ball bearing
33	Motor protector
34	Mechanical seal	Sic-Sic/Carbon-Ceramic
35	Oil seal
47	Cable

Performance table
Model	Voltage	current	Motor power		Outlet		Rated capacity	Rated head	Max capacity	Max head	Impeller passage	Cable
Model	V	A	kW	HP	in	mm	m³/h	m	m³/h	m	mm	mm²
50U2.45AL	380	1.3	0.45	0.6	2	50	12	5	19	8.5	50	1.0
50U2.45ALS	220	3.5	0.45	0.6	2	50	12	5	19	8.5	50	1.0
50U2.75AL	380	2	0.75	1	2	50	15	6	23	11	50	1.0
50U2.75ALS	220	5.2	0.75	1	2	50	15	6	23	11	50	1.0
50U21.1AL	380	2.8	1.1	1.5	2	50	15	8	25	13	50	1.0
50U21.1ALS	220	7.2	1.1	1.5	2	50	15	8	25	13	50	1.0
50U21.5AL	380	3.2	1.5	2	2	50	18	10	29	15	50	1.0
50U21.5ALS	220	10	1.5	2	2	50	18	10	29	15	50	1.5
65U21.5A	380	3.2	1.5	2	2½	65	25	7	45	12	56	1.0
65U21.5AS	220	10	1.5	2	2½	65	25	7	45	12	56	1.5
65U22.2A	380	5	2.2	3	2½	65	25	10	50	16	56	1.0
65U23.0A	380	6.5	3.0	4	2½	65	25	15	57	20	56	1.5
80U24.0A	380	8.9	4.0	5.5	3	80	40	15	69	23.5	56	1.5
80U25.5A	380	11.7	5.5	7.5	3	80	40	20	74	27	56	2.5

Dimensions table
Auto coupling	∅A	∅B	∅C	N∅d	T1	T2	T3	T4	T5	T6	T7	T8	T9	K1	K2	S	h1	h2	h3	h4
TO 50-50(PN6)	∅50/G2"	110	140	4-∅14	265	215	105	22	42	200	215	15	67	163	135	65	25	160	250	276
TO 65-65(PN6)	∅65/G2½"	130	160	4-∅14	280	235	125	25	50	230	235	20	70	190	155	90	25	170	265	291
TO 80-80(PN6)	∅80/G3"	150	190	4-∅18	315	265	145	27	50	255	230	35	78	215	155	79	25	185	305	335



Dimensions table
Model	Auto coupling	H1	H2	H3	H4	A1	A2	A3	A4	P	Q	D	E1xE2	Pump weight & packing dimension
Model	Auto coupling	H1	H2	H3	H4	A1	A2	A3	A4	P	Q	D	E1xE2	N.W	G.W	Packing dimension
50U2.45AL	50-50(PN6)	73	222	382	521	157	295	380	515	79	72	151	650x550	17.5	19	475x250x200
50U2.45ALS	50-50(PN6)	73	222	382	560	157	295	380	515	79	72	151	650x550	17.5	19	515x250x200
50U2.75AL	50-50(PN6)	73	222	402	531	157	295	380	515	79	72	151	650x550	18	19.5	485x250x200
50U2.75ALS	50-50(PN6)	73	222	402	580	157	295	380	515	79	72	151	650x550	19	20.5	530x250x200
50U21.1AL	50-50(PN6)	73	222	422	546	157	295	376	511	84	77	161	650x550	19.5	21	500x245x210
50U21.1ALS	50-50(PN6)	73	222	422	599	157	295	376	511	84	77	161	650x550	20.5	22	555x245x210
50U21.5AL	50-50(PN6)	73	222	442	561	157	295	376	511	84	77	161	650x550	21.5	23	515x245x210
50U21.5ALS	50-50(PN6)	73	222	442	619	157	295	376	511	84	77	161	650x550	23	24.5	570x245x210
65U21.5A	65-65(PN6)	72	247	467	615	157	312	408	578	100	91	191	650x550	27	32	610x230x305
65U21.5AS	65-65(PN6)	72	247	487	695	157	312	408	578	100	91	191	650x550	32	37	690x230x305
65U22.2A	65-65(PN6)	72	247	487	635	157	312	408	578	100	91	191	650x550	30	35	630x230x305
65U23.0A	65-65(PN6)	72	247	527	675	157	312	408	578	100	91	191	650x550	34	39	670x230x305
80U24.0A	80-80(PN6)	80	255	540	688	183	358	463	637	108	100	208	650x550	42	47	700x240x325
80U25.5A	80-80(PN6)	80	255	570	718	183	358	463	637	108	100	208	650x550	47	53	730x240x325
