MH HMC horizantal vertical Centrifugal multistage pump 60hz

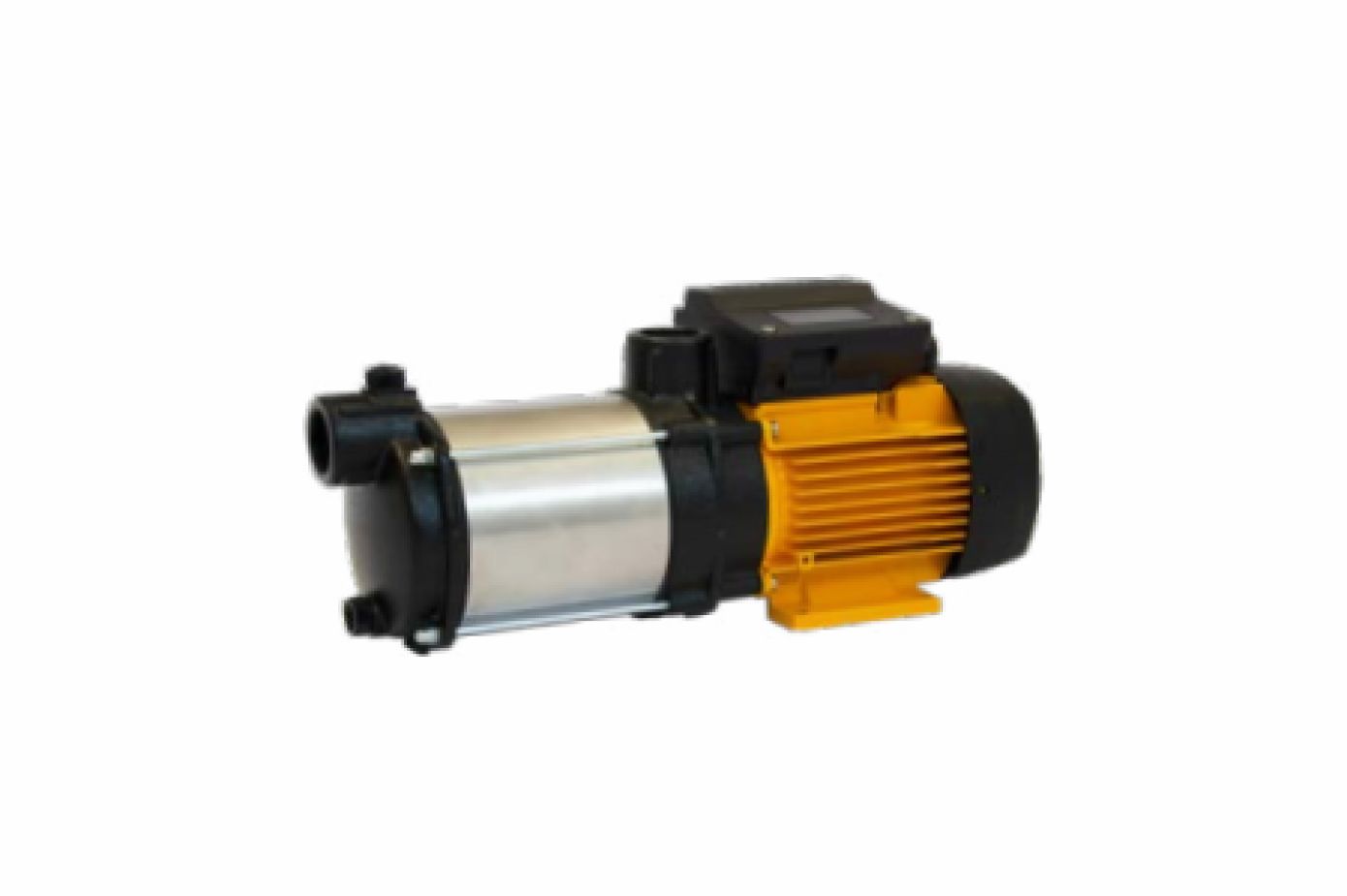

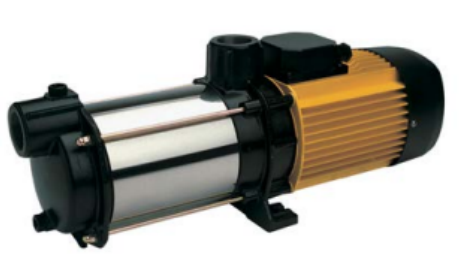

MH Horizontal surface Centrifugal multistage pump for water supply

Applications

Pumping of clean water for domestic,

industrial, agricultural and gardening purposes.

Silent.Self-priming up to 2m.Motor Asynchronous 2 poles.IPX5 protection.

Class F insulation.Single phase motor with built-in thermalprotection.

Continuous operation.

Materials

Pump body and impellers in AISI 304.

Pump shaft in AISI 431.

Diffusers in technopolymer.

Suction and discharge in cast iron with cataphoresis coating.

Mechanical seal.

Motor casing in aluminium.

O-ringsin NBR/EPDM.

Equipment No cable.

Limitations

Maximum water temperature 40 °C.

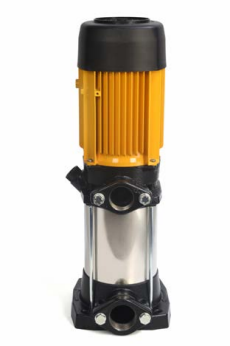

HMC

Centrifugal multistage pump for water supply

Applications
Pumping of clean water for domestic,
industrial, agricultural and gardening
purposes.
Silent.

Materials
Pump body and impellers in AISI 304.
Pump shaft in AISI 420.
Diffusers in technopolymer.
Suction and discharge in cast iron.
Mechanical seal.
Motor casing in aluminium.
O-ringsin NBR/EPDM.

Equipment
No cable.
Oval counter flanges DIN 2558 and gaskets
included.

Motor
Asynchronous 2 poles.
IPX5 protection.
Class F insulation.
Single phase motor with built-in thermal
protection.
Continuous operation.

Limitations
Maximum water temperature 40 °C.

Hydraulic performance table

Model	I [A]				P1 [kW]		P2		c [µF] 115V/220V	l/min	20	30	50	60	70
	1~ 115V	1~ 220V	3~ 220V	3~ 380V	1~	3~	[kW]	[HP]		m³/h	1.2	1.8	3	3.6	4.2
MH 15(2M)	5.8	3.2	ˉ	ˉ	0.65	ˉ	0.37	0.5	30/12	mwc	31	27	20	15	9
MH 15(3M)	8.5	4.7	2.5	1.5	0.95	0.9	0.55	0.75	30/12		45	41	30	23	14

Model	I [A]			P1 [kW]		P2		c [µF] 220V	l/min	20	60	100	140	180
	1~ 220V	3~ 220V	3~ 440V	1~	3~	[kW]	[HP]		m³/h	1.2	3.6	6	8.4	10.8
MH 35(2M)	8.1	5.2	2.9	1.8	1.7	1.1	1.5	25	mwc	42	39	35	27	19
MH 35(3M)	11.5	7.3	4.2	2.5	2.4	1.5	2	30		63	59	52	40	28
MH 35(4M)	ˉ	9	5.2	ˉ	3	2.2	3	ˉ		76	70	60	46	30

Model	I [A]				P1 [kW]		P2		c [µF] 115V/220V	l/min	10	20	40	60	80
	1~ 115V	1~ 220V	3~ 220V	3~ 440V	1~	3~	[kW]	[HP]		m³/h	0.6	1.2	2.4	3.6	4.8
HMC25(3M)	12.5	7.1	4.1	2.4	1.5	1.4	0.9	1.2	30/16	mwc	60	59	51	40	29
HMC25(4M)	ˉ	8.6	5.2	3	1.9	1.8	1.1	1.5	ˉ/25		84	81	70	55	37

Model	I [A]			P1 [kW]		P2		c [µF] 220V	l/min	20	60	80	120	160
	1~ 220V	3~ 220V	3~ 440V	1~	3~	[kW]	[HP]		m³/h	1.2	3.6	4.8	7.2	9.6
HMC35(3M)	11.5	7.3	4.2	2.5	2.4	1.5	2		mwc	62	59	56	48	36
HMC35(4M)	ˉ	10.2	6.3	ˉ	3.2	2.2	3	ˉ		82	78	71	60	46
HMC35(5M)	ˉ	13	7.5	ˉ	4.1	3	4	ˉ		102	97	90	78	60
HMC35(6M)	ˉ	14.7	8.5	ˉ	4.8	4	5.5	ˉ		120	112	108	90	70

Model	I [A]			P1 [kW]		P2		C [µF] 220V	l/min	60	120	160	200	260
	1~ 220V	3~ 220V	3~ 440V	1~	3~	[kW]	[HP]		m³/h	3.6	7.2	9.6	12	15.6
HMC45(2M)	9.2	5.9	3.4	2	1.9	1.5	2	25	mwc	35	30	26	21	13
HMC45(3M)	ˉ	8.3	4.8	ˉ	2.8	2.2	3	ˉ		51	45	39	31	20
HMC45(4M)	ˉ	11.2	6.5	ˉ	3.9	3	4	ˉ		70	63	55	45	29
HMC45(5M)	ˉ	15.4	8.9	ˉ	5	4	5.5	ˉ		90	80	70	58	39
