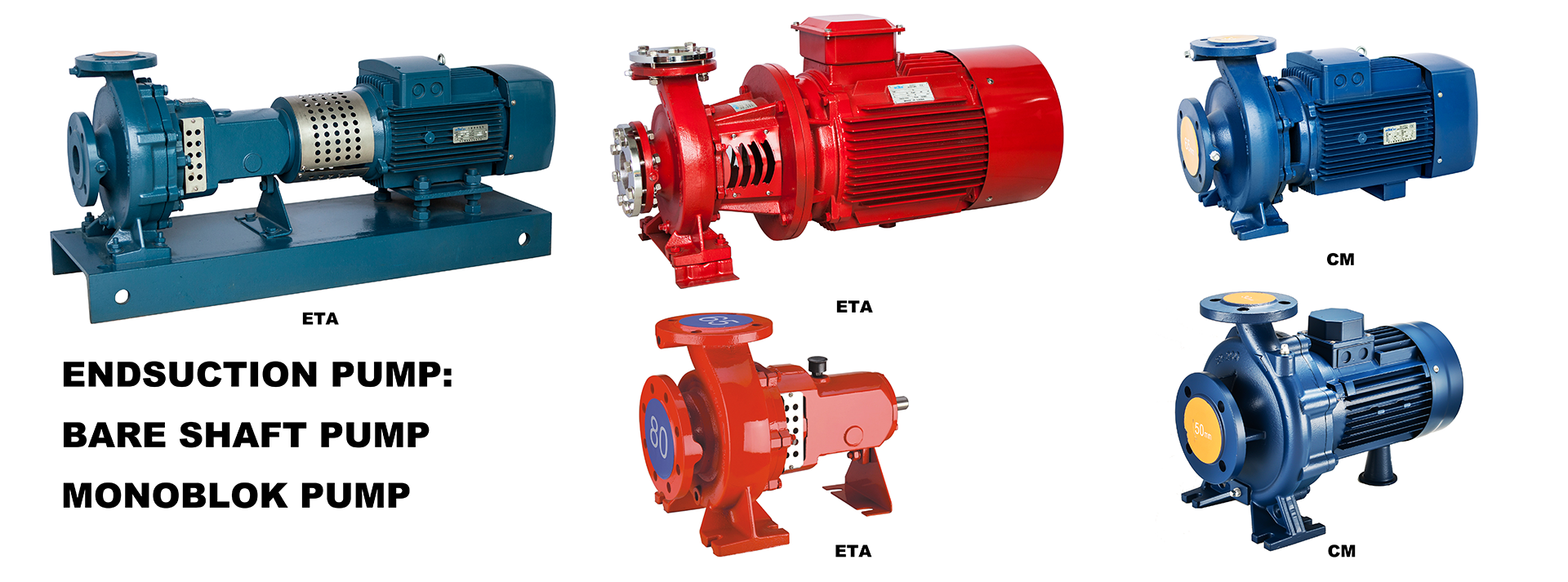

ETA bareshaft monoblock series 50hz

PUMP INSTALLATION AND APPLICATIONS

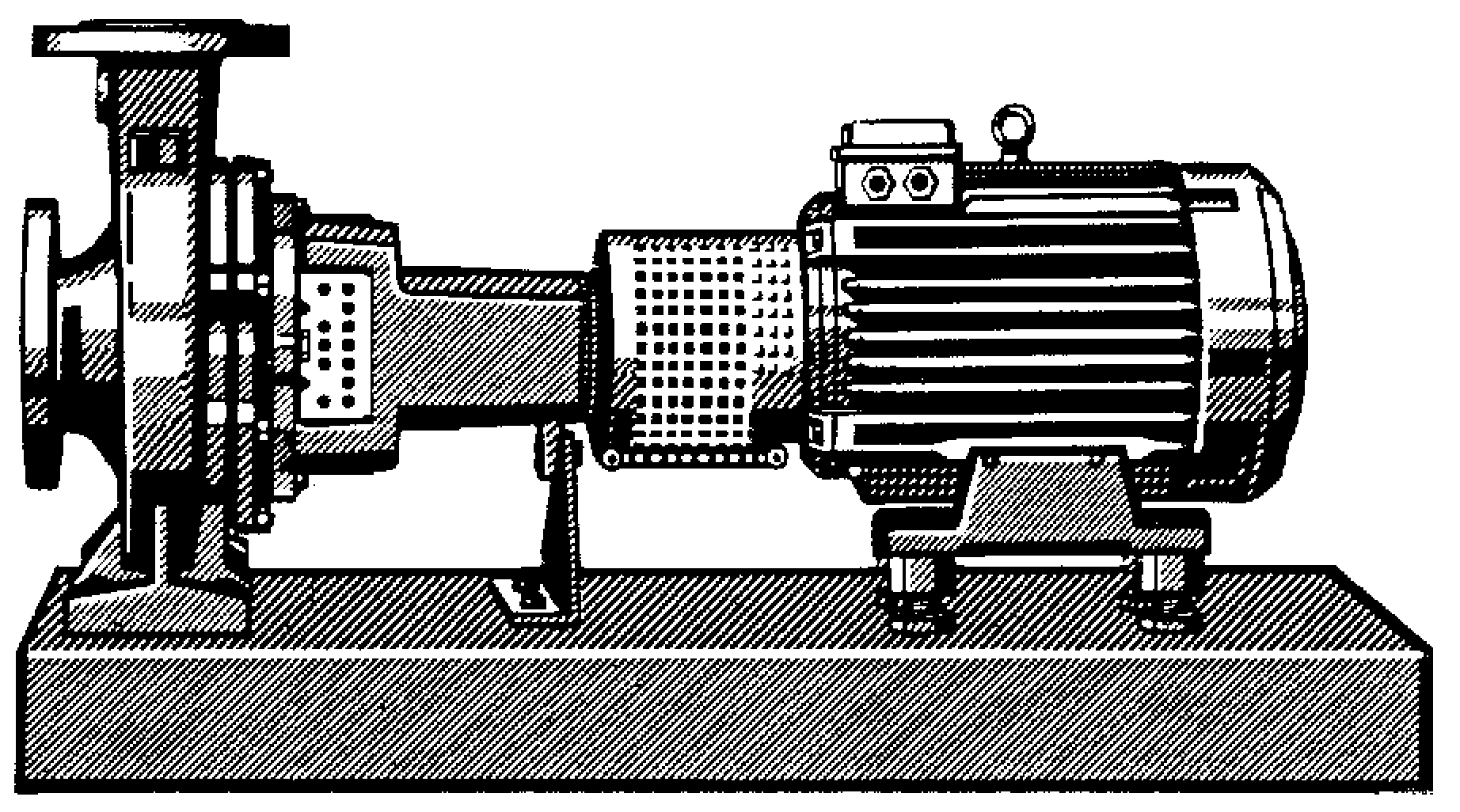

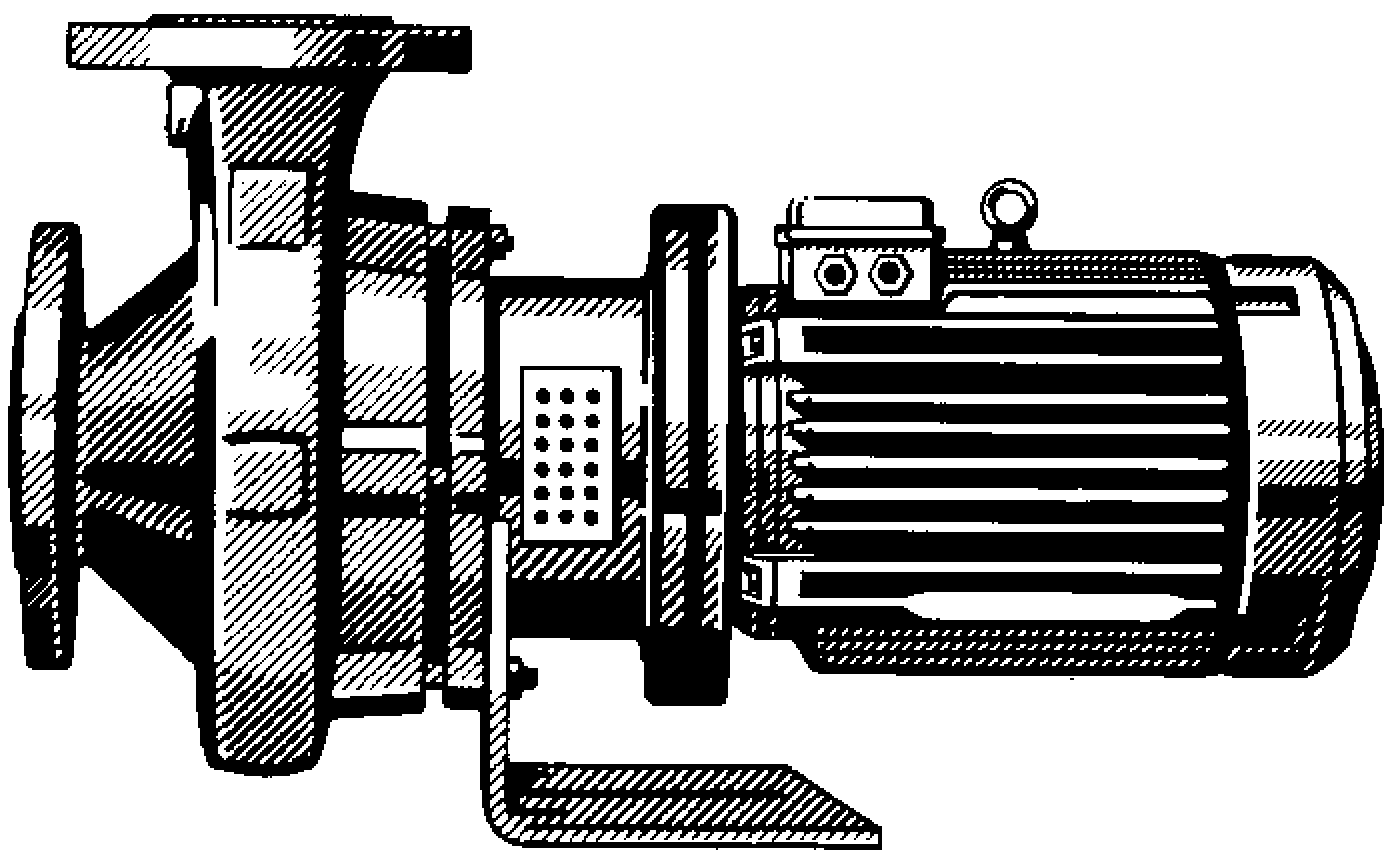

These pumps are recommended for clean water and fluid which are not chemically aggressive to the pump components. they are mainly used for civil, industrial and agricultural applications. where they make the most of the sturdiness and dependability. They are manufactured to EN 733-DIN 24255 standards. Overall dimensions,sizes and positions of suction and delivery openings support feet and performance comply with these standards. The E structural shape allows dismantling without disconnecting the pump body from the pipeline (back pull out),making them easy to use in widely varying conditions.They should be installed in a covered area,protected against weather.

MOTOR:

The pumps are coupled to an asynchronous, high efficiency OLBlN induction motor of suitable size, which is quiet, closed and externally ventilated, suitable for continuous duty.INSULATION class F&B IP55 Shaftseal:mechanical seal or packing

impeller material:

Cast iron G20 stainless steel 304

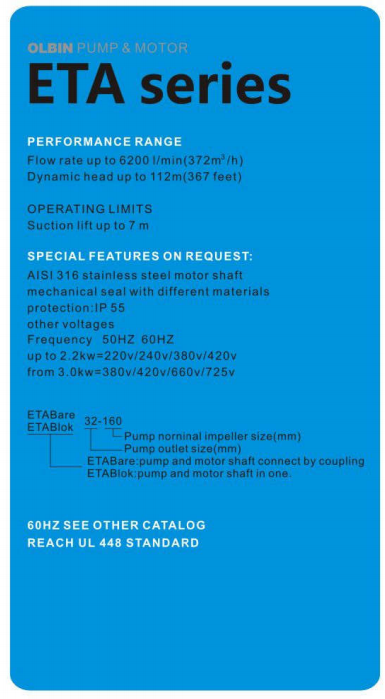

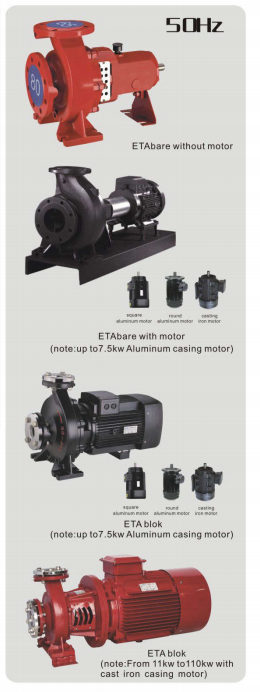

图片3.png 图片4.png

Model	Power		Impeller diameter	Inlet outet diameter
	Kw	HP	mm	mm	mm
	Kw	HP	mm	mm	mm
ETA32-125	5.5	7.5	139	50	32
ETA32-125A	4	5.5	134	50	32
ETA32-125B	4	5.5	129	50	32
ETA32-125C	3	4	123	50	32
ETA32-125D	2.2	3	119	50	32
ETA32-125E	2.2	3	114	50	32
ETA32-125F	2.2	3	108	50	32
ETA32-125G	1.5	2	104	50	32
ETA32-160	7.5	10	176	50	32
ETA32-160A	5.5	7.5	168	50	32
ETA32-160B	5.5	7.5	161	50	32
ETA32-160C	4	5.5	154	50	32
ETA32-160D	4	5.5	144	50	32
ETA32-160E	3	4	136	50	32
ETA32-200	15	20	209	50	32
ETA32-200A	15	20	202	50	32
ETA32-200B	11	15	192	50	32
ETA32-200C	9.8	13	186	50	32
ETA32-200D	7.5	10	178	50	32
ETA32-200E	5.5	7.5	170	50	32
ETA40-160	7.5	10	139	65	40
ETA40-160A	5.5	7.5	134	65	40
ETA40-160B	5.5	7.5	128	65	40
ETA40-160C	5.5	7.5	124	65	40
ETA40-160D	4	5.5	120	65	40
ETA40-160E	3	4	115	65	40
ETA40-160F	3	4	110	65	40
ETA40-160G	3	4	105	65	40
ETA40-200	22	30	209	65	40
ETA40-200A	18.5	25	199	65	40
ETA40-200B	15	20	192	65	40
ETA40-200C	11	15	184	65	40
ETA40-200D	11	15	175	65	40
ETA40-200E	9.8	13	165	65	40

ETA50-125	15	20	142	65	50
ETA50-125A	11	15	137	65	50
ETA50-125B	9.8	13	131	65	50
TA50-125C	9.8	13	125	65	50
ETA50-125D	7.5	10	120	65	50
ETA50-125E	5.5	7.5	112	65	50
ETA50-160	22	30	174	65	50
ETA50-160A	18.5	25	167	65	50
ETA50-160B	15	20	161	65	50
ETA50-160C	15	20	154	65	50
E TA50-160D	11	15	148	65	50
ETA50-160E	9.8	13	141	65	50
ETA50-160F	9.8	13	135	65	50
ETA50-160G	7.5	10	128	65	50
ETA50-200	37	50	219	65	50
ETA50-200A	30	40	210	65	50
ETA50-200B	30	40	202	65	50
ETA50-200C	30	40	193	65	50
ETA50-200D	22	30	187	65	50
ETA50-200E	18.5	25	180	65	50
ETA50-200F	15	20	170	65	50
ETA65-125	15	20	141	80	65
ETA65-125A	15	20	137	80	65
ETA65-125B	15	20	131	80	65
ETA65-125C	11	15	128	80	65
ETA65-125D	9.8	13	122	80	65
ETA65-125E	7.5	10	119	80	65
ETA65-125F	7.5	10	108	80	65
ETA65-125G	5.5	7.5	100	80	65
ETA65-160	30	40	174	80	65
ETA65-160A	22	30	166	80	65
ETA65-160B	18.5	25	159	80	65
ETA65-160C	18.5	25	151	80	65
ETA65-160D	15	20	147	80	65
ETA65-160E	11	15	144	80	65
ETA65-160F	11	15	138	80	65

ETA65-200	37	50	204	80	65
ETA65-200A	37	50	195	80	65
ETA65-200B	30	40	187	80	65
ETA65-200C	30	40	180	80	65
ETA65-200D	22	30	175	80	65
ETA80-160	37	50	174	100	80
ETA80-160A	37	50	170	100	80
ETA80-160B	30	40	166	100	80
ETA80-160C	30	40	162	100	80
ETA80-160D	30	40	158	100	80
ETA80-160E	22	30	154	100	80
ETA80-200	75	100	219	100	80
ETA80-200A	60	80	208	100	80
ETA80-200B	55	75	199	100	80
ETA80-200C	45	60	190	100	80
ETA80-200D	40	55	180	100	80
ETA100-160	75	100	185	100	80
ETA100-160A	55	75	180	100	80
ETA100-160B	45	60	175	100	80
ETA100-160C	37	50	170	100	80
ETA100-200	110	150	219	125	100
ETA100-200A	110	150	207	125	100
ETA100-200B	90	120	197	125	100
ETA100-200C	75	100	189	125	100
ETA100-200D	75	100	179	125	100
ETA125-200	110	150	212	150	125
ETA125-200A	90	120	208	150	125

ETA32-160	0.55kw	50	32
ETA32-200	1.1kw	50	32
ETA32-200A	0.75kw	50	32
ETA32-2008	0.55kw	50	32
ETA32-250	2.2kw	50	32
ETA32-250A	1.5kw	50	32
ETA32-250B	1.1kw	50	32
ETA40-160	1.1kw	65	40
ETA40-160A	0.75kw	65	40
ETA40-1608	0.55kw	65	40
ETA40-200	1.5kw	65	40
ETA40-200A	1.1kw	65	40
ETA40-200B	0.75kw	65	40
ETA40-250	3kw	65	40
ETA40-250A	2.2kw	65	40
ETA40-2508	1.5kw	65	40
ETA40-250C	1.1kw	65	40
ETA40-315	5.5kw	65	40
ETA40-315A	4kw	65	40
ETA40-3158	3kw	65	40
ETA40-315C	2.2kw	65	40
ETA50-125	1.1kw	65	50
ETA50-125A	0.75kw	65	50
ETA50-125B	0.55kw	65	50
ETA50-160	1.5Kw	65	50
ETA50-160A	1.1kw	65	50
ETA50-160B	0.75kw	65	50
ETA50-200	3kw	65	50
ETA50-200A	2.2kw	65	50
ETA50-200B	1.5kw	65	50
ETA50-250	4kw	65	50
ETA50-250A	3kw	65	50
ETA50-250B	2.2kw	65	50
ETA50-315	T5	65	50
ETA50-315A	5.5kw	65	50
ETA50-315B	4kw	65	50
ETA65-125	1.1kw	80	65
ETA65-125A	0.75kw	80	65
ETA65-125B	0.55kw	80	65
ETA65-160	2.2kw	80	65
ETA65-160A	1.5kw	80	65
ETA65-1608	1.1kw	80	65
ETA65-200	4kw	80	65
ETA65-200A	3kw	80	65
ETA65-2008	2.2kw	80	65
ETA65-250	5.5kw	80	65
ETA65-250A	4kw	80	65
ETA65-2508	3kw	80	65
ETA65-315	11kw	80	65
ETA65-315A	7.5kw	80	65
ETA65-3158	5.5kw	80	65

ETA80-160	3kw	100	80
ETA80-160A	2.2kw	100	80
ETA80-160B	1.5kw	100	80
ETA80-200	5.5kw	100	80
ETA80-200A	4kw	100	80
ETA80-200B	3kw	100	80
ETA80-250	11kw	100	80
ETA80-250A	7.5kw	100	80
ETA80-250B	5.5kw	100	80
ETA80-250C	4kw	100	80
ETA80-315	18.5kw	100	80
ETA80-315A	15kw	100	80
ETA80-3158	11kw	100	80
ETA100-160	4kw	125	100
ETA100-160A	3kw	125	100
ETA100-200	7.5kw	125	100
ETA100-200A	5.5kw	125	100
ETA100-200B	4kw	125	100
ETA100-250	15kw	125	100
ETA100-250A	11kw	125	100
ETA100-250B	7.5kw	125	100
ETA100-315	30kw	125	100
ETA100-315A	22kw	125	100
ETA100-315B	18.5kw	125	100
ETA100-315C	15kw	125	100
ETA125-200	15kw	150	125
ETA125-200A	11kw	150	125
ETA125-200B	7.5kw	150	125
ETA125-250	18.5kw	150	125
ETA125-250A	15kw	150	125
ETA125-250B	11kw	150	125
ETA125-315	37kw	150	125
ETA125-315A	30kw	150	125
ETA125-3158	22kw	150	125
ETA125-315C	18.5kw	150	125
ETA150-200	15kw	200	150
ETA150-200A	11kw	200	150
ETA150-250	30kw	200	150
ETA150-250A	22kw	200	150
ETA150-250B	18.5kw	200	150
ETA150-250C	15kw	200	150
ETA150-315	45kw	200	150
ETA150-315A	37kw	200	150
ETA150-3158	30kw	200	150
ETA150-315C	22kw	200	150
