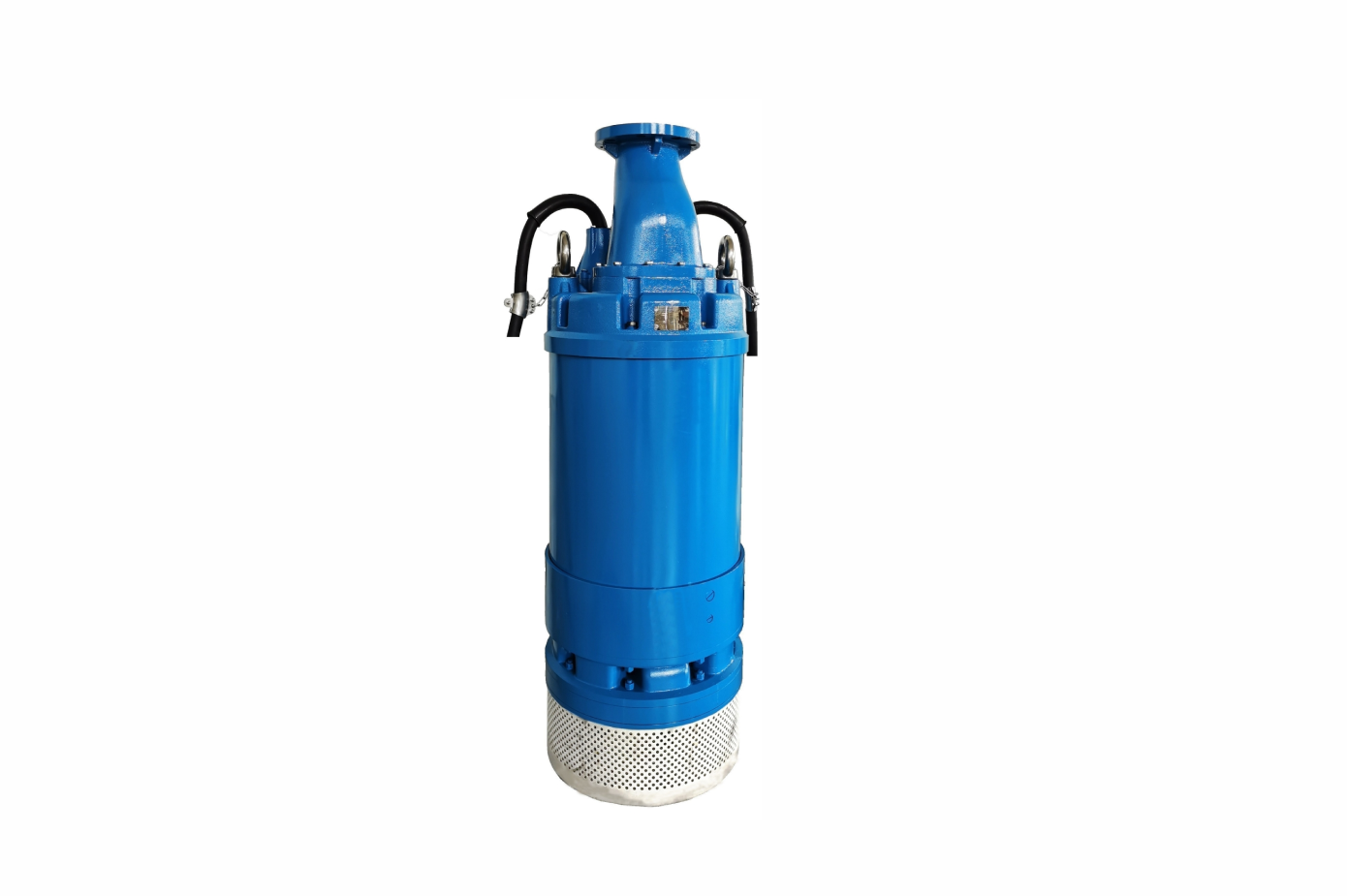

The body of motor and pump is made of hard cast iron for long-lasting durability.
Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.The pump can be only partially immersed, with hydraulic part under motor and motor cooled by pumpedwater for safe operation.The top discharge design maximize the utilization of space.Hermetically sealedmotor equipped with built-in thermal protection.Seal pressure relief ports is incorporated to prevent thepumping pressure from applying to the shaft seal.
The back-to-back design of the double impeller greatly reduces the axial force of the pump and improvesthe service life of the bearing.
Discharge 50mm(2") to 150mm(6"), motor 3.0kW (4.OHP) to 150 kW(200HP).Motor is dry type submersible induction motor (2 poles).

Specification

· Capacity: up to 218m³/h

· Head: up to 230 meters

· power: 3.0kw (4.0HP) to 150kw (200HP)

· power supply: three phase 400V±10%,50HZ

                                          380V士10%, 60HZ

.  Insulation class: F

. protection class: IP68

· cable length: 20m

· water temperature: up to 40℃

· Max.water depth:30m

Application

· Deep-well pre-dewatering or high-head dewatering

· Civil engineering and construction works

· Mines, quarries, coal ore & slurries

· Sewage treatment plants

· General pumping purposes

special features on request

· Other voltages

· The length of cable is optional
