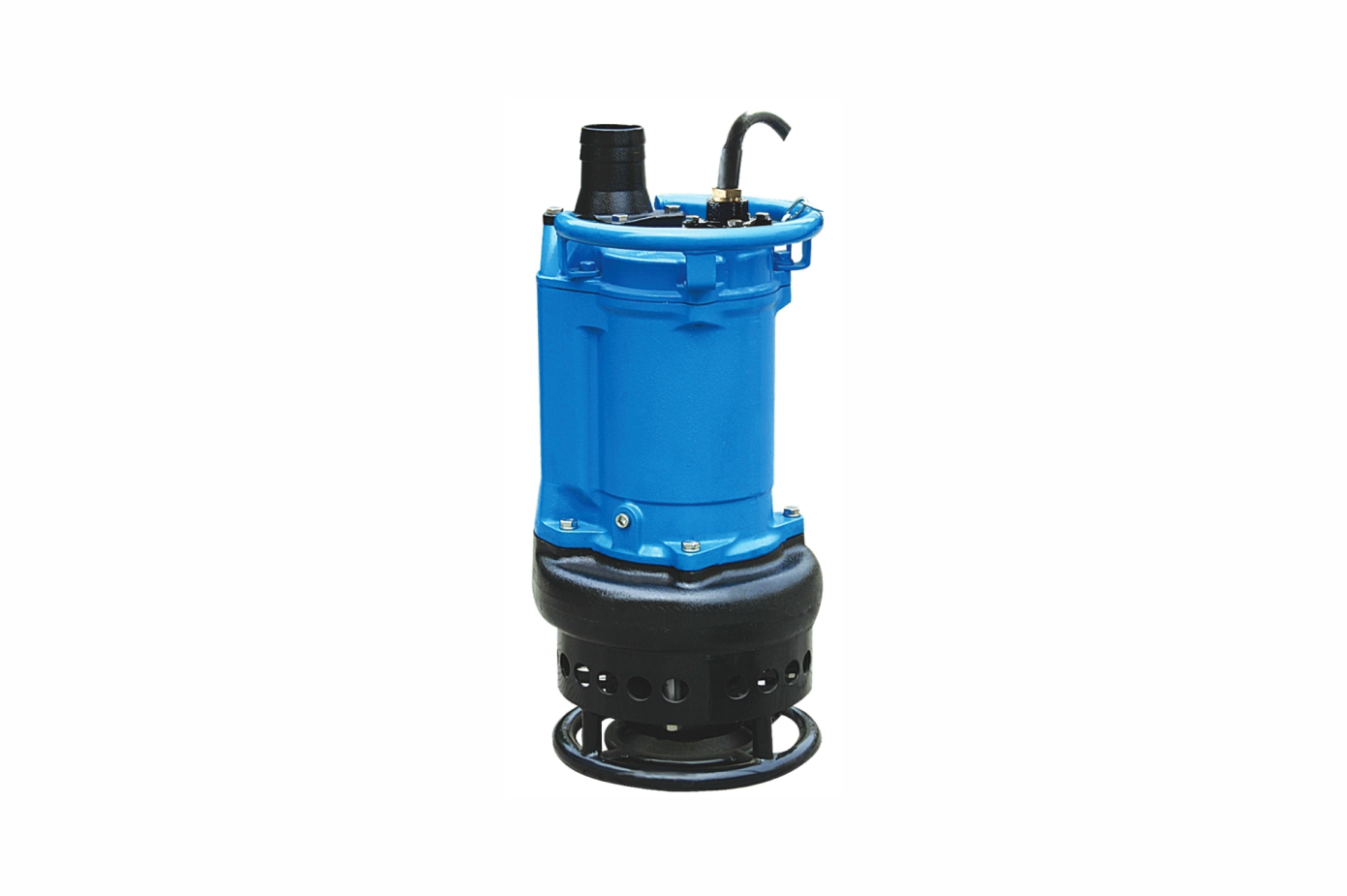

Submersible slurry pump with 4-pole motor for increased lifetime and greater convenience.
High chrome alloy impeller combined with agitator is designed for pumping heavy slurry.
Silm design with a top discharge enabling installation in smaller casing.
For bentonite mixed water in fundation works or muddy water in civil engineor works.

Specification

· Capacity: up to 390m³/h

· Head: up to 39 meters

· Discharge: 80mm(3") to 200mm(8")

· power: 4kw (5.5HP) to 37kw (50HP)

· power supply: three phase 380V±10%,50HZ

                         380V士10%, 60HZ

.  Insulation class: F

. protection class: IP68

· cable length: 8m

· water temperature: up to 40℃

· Max.water depth:15m

Application

· civil engineering

· Mines, quarries, coal ore & slurries

· Sewage treatment plants

· General pumping purposes

· Pumping fluid: sludge, liquid-containing

                          mud and bentonite

special features on request

· Other voltages

· The length of cable is optional
