Products > monoblock CM pump series 50hz

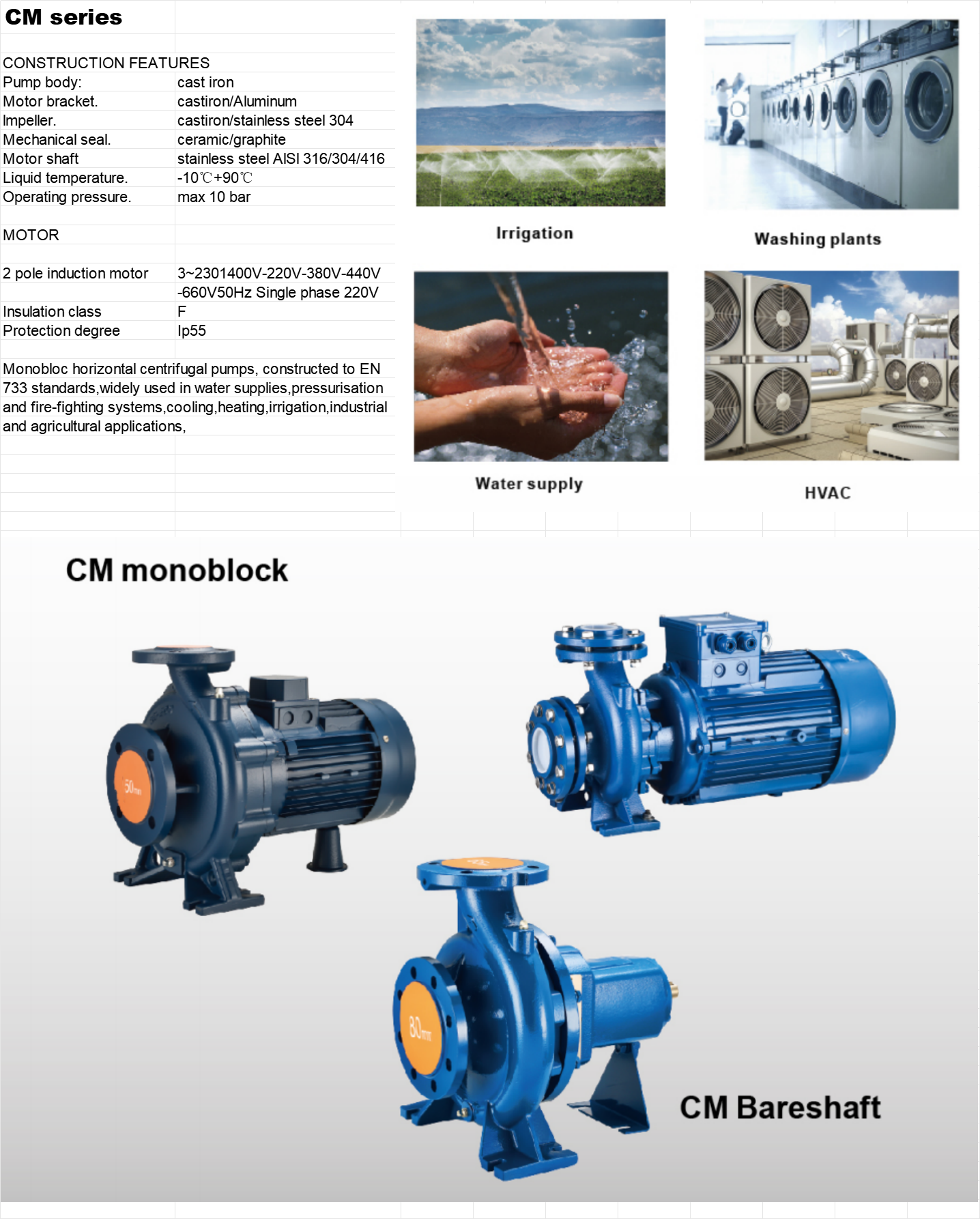

monoblock CM pump series 50hz

product details
performance table

Upper： ETA BARESHAFT PUMP 60Hz

Below： monoblock pump CM series 60hz

TYPE			P2		P1 (KW)
3~	inlet （inch）	outlet（inch）


			(HP)	(KW)	3~
32-160C(*)	2“	1.25”	2	1.5	2.3
32-160B(*)	2“	1.25”	3	2.2	2.9
32-160A	2“	1.25”	4	3	4.1
32-200C	2“	1.25”	5.5	4	5.2
32-200B1	2“	1.25”	7.5	5.5	6.6
32-200B	2“	1.25”	7.5	5.5	8.0
32-200A1	2“	1.25”	10	7.5	8.5
32-200A	2“	1.25”	10	7.5	9.9
32-250C	2“	1.25”	12.5	9.2	11.9
32-250B	2“	1.25”	15	11	14.4
32-250A1	2“	1.25”	20	15	16
32-250A	2“	1.25”	20	15	18.1
40-125C(*)	2.5“	1.5”	2	1.5	2.3
40-125B(*)	2.5“	1.5”	3	2.2	2.9
40-125A	2.5“	1.5”	4	3	4.1
40-160B	2.5“	1.5”	4	3	4.4
40-160A	2.5“	1.5”	5.5	4	5.7
40-200B1	2.5“	1.5”	7.5	5.5	6.5
40-200B	2.5“	1.5”	7.5	5.5	7.4
40-200A1	2.5“	1.5”	10	7.5	8.1
40-200A	2.5“	1.5”	10	7.5	9.8
40-250C	2.5“	1.5”	12.5	9.2	12.6
40-250B	2.5“	1.5”	15	11.0	14.4
40-250A1	2.5“	1.5”	20	15	17.5
40-250A	2.5“	1.5”	20	15	19.0
50-125B	2.5“	2”	4	3	4.3
50-125A	2.5“	2”	6	4	5.5
50-160B1	2.5“	2”	7.5	5.5	6.2
50160B	2.5“	2”	7.5	5.5	6.7
50-160A1	2.5“	2”	10	7.5	8.3
50160A	2.5“	2”	10	7.5	9.4
50-200C	2.5“	2”	12.5	9.5	10.6
50-200B	2.5“	2”	15	11	12.4
50-200A1	2.5“	2”	20	15	14.5
50-200A	2.5“	2”	20	15	15.4
50-250C	2.5“	2”	20	15	20
50-250B	2.5“	2”	25	18.5	23
50-250A	2.5“	2”	30	22.5	28.5
65-125 B1	3“	2.5”	7.5	5.5	6.4
65-125B	3“	2.5”	7.5	5.5	7.2
65-125 A1	3“	2.5”	10	7.5	8.1
65-125 A	3“	2.5”	10	7.5	9.5
65-160C	3“	2.5”	12.5	9.2	11.7
65-160B	3“	2.5”	15	11	13
65-160A1	3“	2.5”	20	15	15.8
65-160A	3“	2.5”	20	15	18
65-200C1	3“	2.5”	20	15	17.1
65-200C	3“	2.5”	20	15	18.6
65-200B	3“	2.5”	25	18.5	22.6
65-200A	3“	2.5”	30	22.5	26.6
65-250B	3“	2.5”	40	30	37.8
65-250A	3“	2.5”	50	37	45
80-160E	4“	3”	12.5	9.2	9.9
80-160D	4“	3”	15	11	12.7
80-160C1	4“	3”	20	15	14.8
80-160C	4“	3”	20	15	15.9
80-160 A	4“	3”	25	18.5	20.1
80-160 B	4“	3”	30	22.5	23.7
80-200B	4“	3”	40	30	37.8
80-200A	4“	3”	50	37	45
